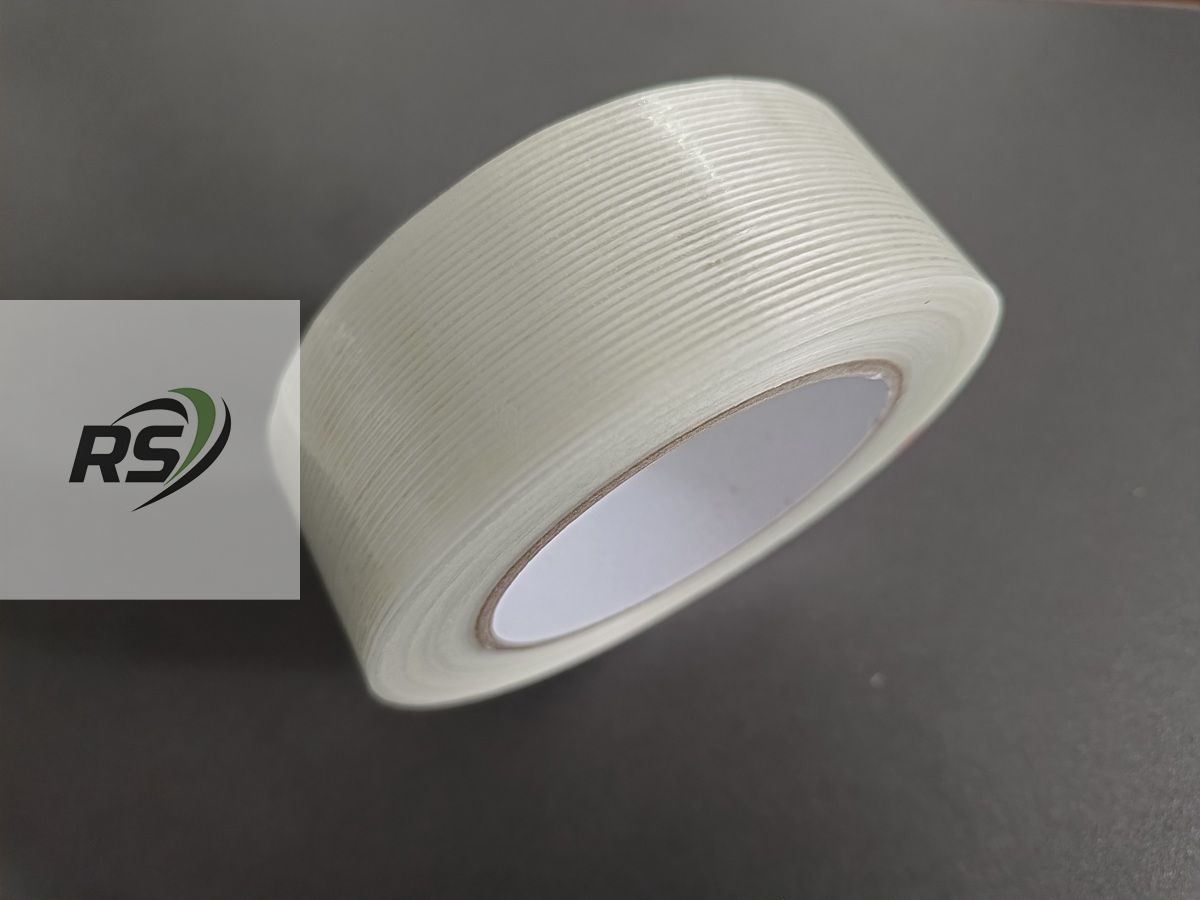

J-3702S is a cost-effective mono filament strapping tape made with PET film backing, longitudinal fiberglass reinforcement, and synthetic rubber pressure-sensitive adhesive. It is designed for regular industrial packaging, carton reinforcement, appliance part fixing, furniture holding, pipe and rod bundling, and light-to-medium transport protection where ordinary packing tape is not strong enough.
J-3702S is not just a thicker packing tape. Its strength comes from a simple structure: PET film backing, lengthwise fiberglass filaments, and synthetic rubber adhesive. The PET backing gives the tape a stable carrier. The fiberglass filaments carry pulling force mainly along the tape length. The synthetic rubber adhesive gives fast tack on common packaging surfaces such as cartons, appliance panels, painted metal, plastic parts, and wood components.
That structure makes J-3702S useful when a package needs reinforcement rather than basic closure. For example, a light carton may only need normal BOPP packing tape. But if the carton edge is under tension, an appliance part needs temporary holding, or several rods need to be bundled together, mono filament tape becomes a better option.
A common mistake is treating all filament strapping tapes as the same. They are not. J-3702S is the cost-effective standard mono grade. It is built for regular packaging reinforcement and light-to-medium bundling. If the job involves much heavier loads, stronger transport shock, sharper metal parts, or more demanding pallet reinforcement, our Filament Strapping Tape (Heavy Duty) grade J-3702H should be evaluated instead.
|
Item |
J-3702S |
|
Adhesive Type |
Synthetic Rubber |
|
Total Thickness |
0.11 mm |
|
Peeling Strength |
25 N/25mm |
|
Tensile Strength |
450 N/25mm |
|
Elongation at Break |
6% |
|
Max. Service Temperature |
70°C |
|
Standard Length |
50 m |
Values are typical product data. Final specifications, tolerances, and test methods should be confirmed by the final TDS or agreed purchase specification before production approval. Do not treat one number as a universal guarantee for every surface, carton, load, storage condition, or transport route.
The 450 N/25mm tensile strength tells buyers that J-3702S has strong length-direction resistance compared with ordinary packing tape. It does not mean one strip of tape can safely replace every plastic strap, steel strap, or mechanical fixture. Packaging failure is rarely decided by tensile strength alone.
In real packaging, the weak point may be the carton board, the tape direction, poor surface contact, oil on metal parts, vibration during truck transport, or load movement inside a container. Low elongation helps reduce movement, but the full packaging method still needs to be tested.
For appliance packaging, J-3702S can help hold shelves, doors, panels, accessories, or protective materials during handling. For furniture packaging, it can help keep components in position before carton closing or palletizing. For cartons, it can reinforce edges or flaps that are exposed to pulling force. For pipe, tube, rod, and profile bundling, it provides lengthwise holding without using a heavier strapping system for every job.
J-3702S is a mono filament tape. The main reinforcement runs in one direction, so it is best used where the pulling force is mostly lengthwise. This makes it suitable for bundling, straight-line reinforcement, appliance part fixing, furniture component holding, and cost-sensitive packaging jobs.

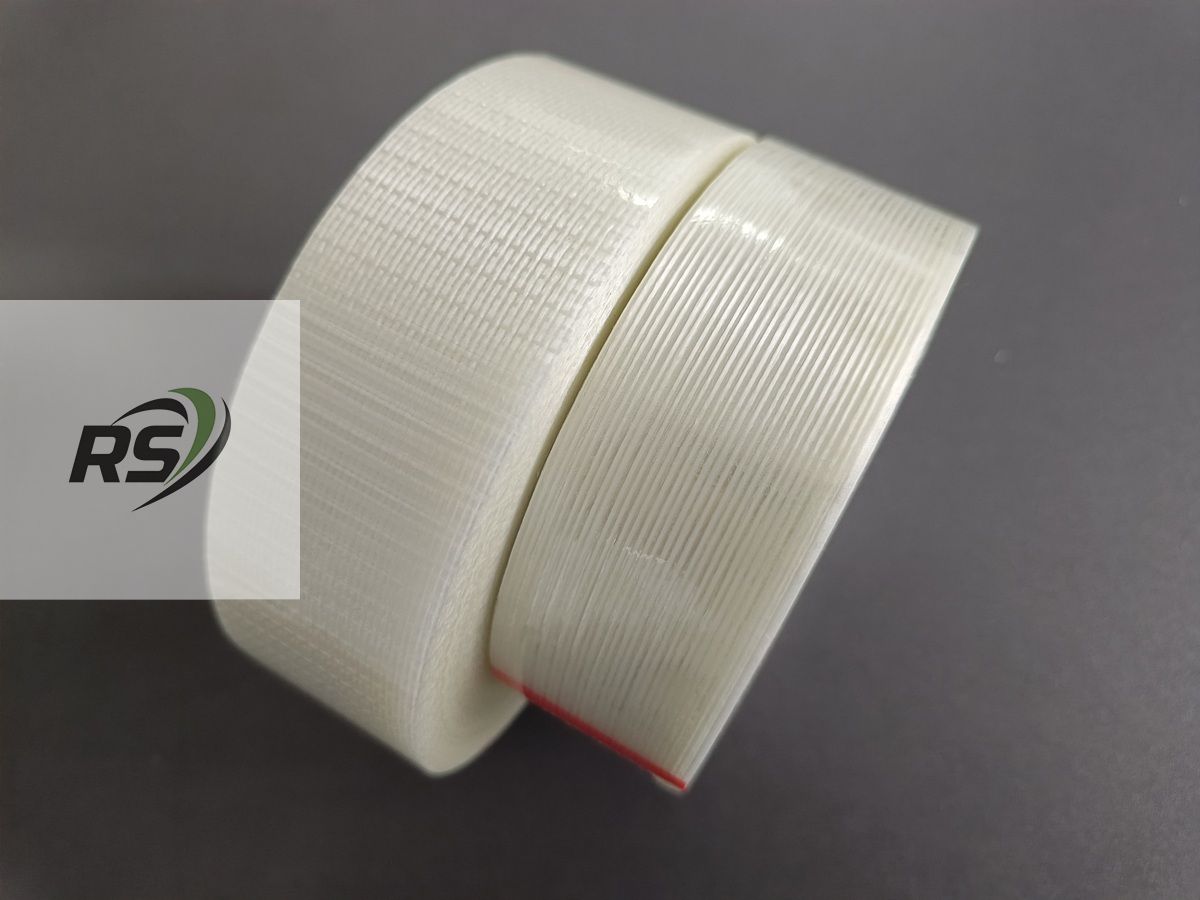

A cross-weave filament tape or bi-directional filament tape has reinforcement in both directions. That structure is better when the carton needs two-way tear resistance, stronger box closure, corner protection, or wider reinforcement across more than one stress direction.
The right choice depends on how the package fails. If the load pulls mainly along the tape length, mono filament tape is usually the practical starting point. If the carton tears across corners or opens in more than one direction, cross-weave construction may be safer. For buyers comparing tape structures, our material comparisons and industrial tape buying guides can help organize the selection before sampling.
J-3702S fits regular industrial packaging where ordinary packing tape is not enough but a heavy-duty filament tape may be more than the job requires.
Typical uses include carton reinforcement, appliance part fixing, furniture component holding, wood and metal part bundling, pipe and rod bundling, light pallet stabilization, warehouse transfer, and transport protection for medium packaging loads.
In appliance packaging, the tape is often used for temporary fixation rather than final product assembly. The goal is to stop movement during packing, warehousing, and shipping. In furniture and wood packaging, it can help hold long parts or panels in position. In carton reinforcement, it can support weak edges, flaps, or areas that see repeated handling.
This is also where buyers should be careful. J-3702S is a packaging reinforcement tape. It is not an electrical insulation tape, not a glass cloth electrical tape, and not a high-temperature masking tape. If your project requires dielectric performance, heat resistance, or certified electrical insulation, review our electrical insulation solutions instead of selecting packaging-grade filament tape.
For buyers comparing tape options across carton reinforcement, pallet stabilization, appliance packaging, and transport bundling, our Industrial Packaging Solutions page gives a broader view of how filament tape fits into industrial packaging and load-securing applications.
J-3702S and J-3702H are both mono filament strapping tapes, but they are not positioned for the same packaging risk.
J-3702S is the economical starting grade. It has 0.11 mm total thickness, 450 N/25mm tensile strength, 6% elongation at break, and 50 m standard roll length. It is suitable for general carton reinforcement, appliance part fixing, furniture holding, and light-to-medium bundling.
J-3702H is the heavy-duty option. It has 0.15 mm total thickness, 1500 N/25mm tensile strength, 8% elongation at break, and 50 m / 55 m roll length. It is better suited for high-load packaging, heavy appliance packaging, metal parts, machinery components, strong carton reinforcement, and more demanding transport conditions.
|
Grade |
Positioning |
Key Data |
Typical Use |
|
J-3702S |
Cost-effective standard mono filament tape |
0.11 mm, 450 N/25mm, 6% elongation |
General carton reinforcement, appliance part fixing, furniture holding, light-to-medium bundling |
|
J-3702H |
Heavy-duty mono filament tape |
0.15 mm, 1500 N/25mm, 8% elongation |
Heavy appliance packaging, metal parts, machinery components, stronger carton and pallet reinforcement |
Not every packaging job needs the heavy-duty grade. If the load is moderate and the goal is cost control, J-3702S is usually the first grade to test. If the package is heavy, the shipping route is rough, or the tape has failed before under tension, J-3702H should be tested as the stronger alternative.
Synthetic rubber adhesive usually gives fast initial tack, which is useful for packaging lines where operators need quick application and immediate holding. But the surface still decides a lot. Dusty cartons, oily metal, rough wood, painted surfaces, coated plastics, and low-surface-energy materials should be tested before approval.
The max. service temperature for J-3702S is 70°C. This product should not be used for oven baking, powder coating, PCB solder masking, heat-aging processes, or high-temperature production steps. The fiberglass filaments provide mechanical reinforcement, but the overall tape performance is still limited by the PET backing and synthetic rubber adhesive system.
Clean removal also depends on the real condition. Dwell time, pressure, temperature, substrate, coating, and peel method can all affect adhesive transfer. Do not approve any filament packing tape as “residue-free” without testing it on the actual carton, painted panel, plastic part, metal surface, or appliance component.
In colder storage or low-temperature application conditions, operators may need more application pressure and a cleaner surface to help the adhesive wet out properly. That small process detail often matters more than buyers expect.
J-3702S should not be selected when the application requires certified electrical insulation, high-temperature masking, powder coating masking, PCB solder masking, or long-term outdoor UV exposure. It should also not be treated as a universal replacement for steel strapping or plastic strapping in safety-critical loads.
For ordinary light carton sealing, BOPP packing tape may be enough. For high-load packaging, stronger pallet reinforcement, or repeated handling of heavy metal and machinery parts, J-3702H may be the better filament strapping tape to evaluate.
This kind of boundary is important. A lower-cost tape is only cost-effective when it matches the risk. If it breaks, lifts, or leaves residue during transport, the saving disappears quickly.
J-3702S can be supplied in standard 50 m rolls and custom slit widths according to packaging requirements. Custom lengths, carton packing, distributor packing, and sample rolls can be discussed based on order details.
For packaging distributors and OEM buyers, private-label packing or carton labeling can be discussed for suitable bulk orders. Printed branding on the tape itself should not be treated as the main value of this product. The core value is reinforcement, holding strength, and packaging stability.
A useful RFQ should include more than width and quantity. Please share the package type, product weight, surface material, whether the tape is temporary or permanent, whether removal is required, transport distance, domestic or export shipment, and the current packaging failure issue.
For appliance, furniture, carton, metal, wood, pipe, rod, or pallet applications, also include the target tape width, current tape type, desired tensile level, roll length, and sample quantity. If you are deciding between J-3702S and J-3702H, send photos of the package and describe where the current tape fails.
This information helps us recommend J-3702S or a heavier filament tape grade for sample testing instead of sending a random sample that may not match the packaging risk.
What is J-3702S mono filament strapping tape mainly used for?
J-3702S is mainly used for carton reinforcement, appliance part fixing, furniture holding, pipe and rod bundling, and light-to-medium transport protection. It is a cost-effective choice when ordinary packing tape is not strong enough.
How is J-3702S different from J-3702H heavy-duty filament tape?
J-3702S is the standard cost-effective grade with 0.11 mm thickness and 450 N/25mm tensile strength. J-3702H is the heavy-duty grade with 0.15 mm thickness and 1500 N/25mm tensile strength for higher-load packaging.
Mono filament vs cross-weave filament tape: which should I choose?
Choose mono filament tape when the main pulling force is in one direction, such as bundling or part fixing. Choose cross-weave filament tape when the carton or package needs bidirectional reinforcement, stronger box closure, or corner protection.
Can J-3702S replace plastic or steel strapping?
It can replace strapping in some carton, appliance, furniture, or component holding applications, but not every heavy load or safety-critical load. Packaging validation is required before replacing plastic strap, steel strap, or mechanical fastening.
Does J-3702S remove cleanly after transport?
Clean removal depends on surface, dwell time, pressure, temperature, and peel method. Test on the actual carton, plastic part, painted panel, metal surface, or appliance component before approval.
Can you supply custom widths or sample rolls?
Yes. Custom widths, roll formats, and sample rolls can be discussed. Please provide package type, product weight, surface material, transport condition, tape width, and removal requirement before sampling.
Send your package type, product weight, surface material, transport condition, width requirement, tensile strength target, and removal requirement. We can recommend J-3702S or compare it with J-3702H for sample testing before bulk ordering.
